Clean Nested Blocks

Command: NDNB

Video: www.nsvsoft.net/videos/CleanNestedBlocks

Description: Cleans extra components from a block reference.

How To Apply:

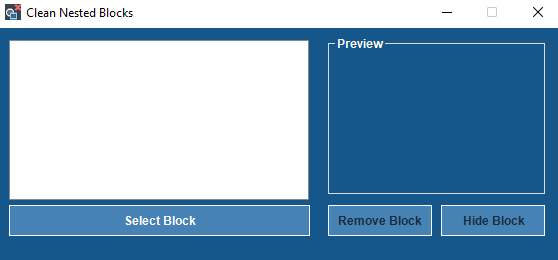

After running the command, the following window appears:

Select the block you wish to remove from your drawing. You can view the nesting levels of the selected block. Choose the level you are satisfied with from the list box. A preview of each nesting level is available on the right side.

If you wish to temporarily hide this block and retrieve it later using the “Retrieve Hidden Blocks” command, select the “Hide Block” button. If you want to remove this block from the current drawing permanently, click the “Remove Block” button.
